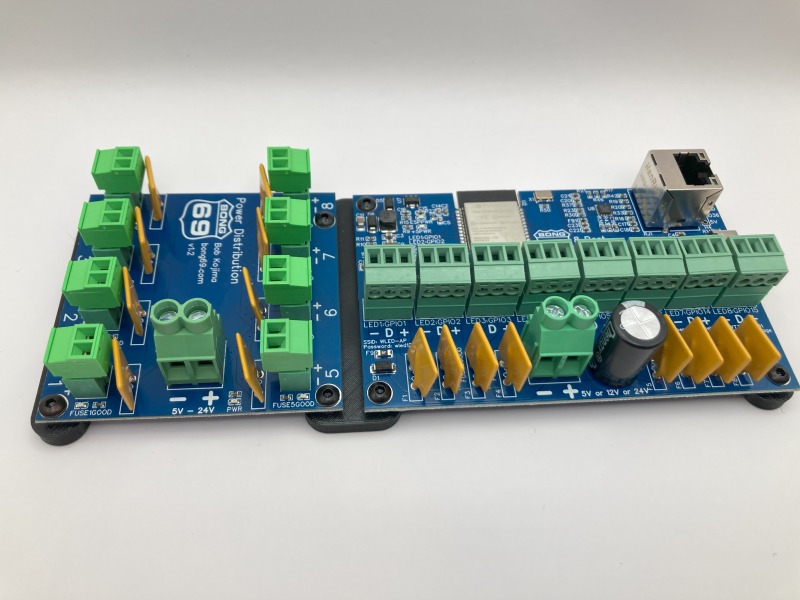

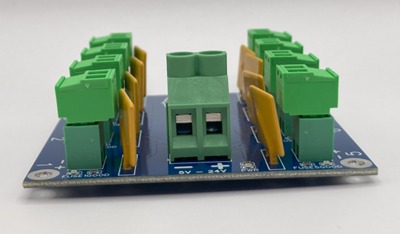

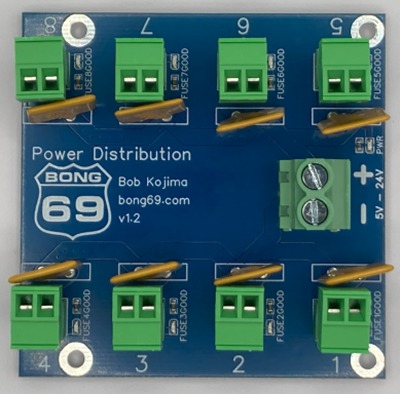

Power Distribution Board

Eight fused power outputs on removable Phoenix connectors, for wiring LED power without the mess.

Specifications

Voltage: 5 V to 24 V
Input: 35 A, 10-22 AWG wire
Outputs: 8 x 5 A, 16-28 AWG wire
Resettable fuses (5 A hold, 8 A trip) that never need replacing
A light next to each fuse shows it is good; if it goes dark, the fuse has tripped
Reset a tripped fuse by powering the board down
Removable Phoenix connectors make wiring easy
Size: 70 x 70 mm

Best setup: a 30 A power supply, drawing an average of 4 A from each of the 8 outputs.
