8 Port LED Distro

An 8 port ESP32 LED distro board running WLED, distributing both power and data from one board. Wi-Fi or Ethernet, and a USB-C port for easy programming.

8 Port LED Distro version 4.1

Version 4.1

  • Works with 12 V to 48 V pixels, including 36 V pixels like Govee and 48 V pixels like JellyFish
  • 5 A replaceable fuse on every LED output, with a fuse indicator light
  • Power input on round nuts for spade connectors
  • Wi-Fi or wired Ethernet (WT32-ETH01), USB-C for programming
  • Headers for a microphone (sound reactive), buttons and a temperature sensor
Buy on TindieWasatch LightsFAQ & setup

Which version should I get?

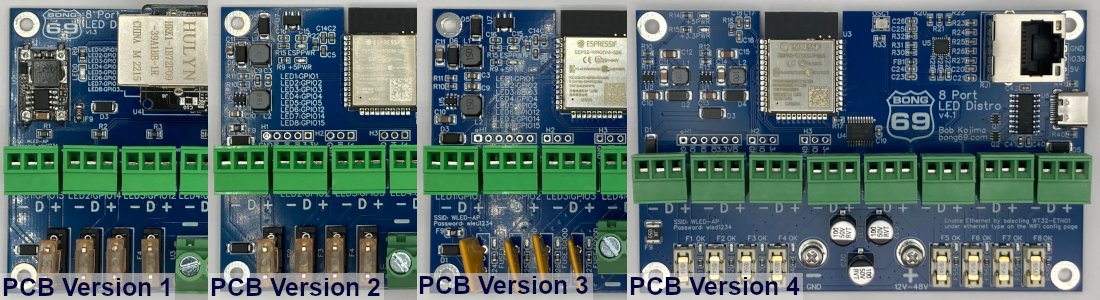

Version 4 is the one we make now. It works with 12 V, 24 V, 36 V and 48 V pixels and is more robust at higher voltages. Version 3 (5 V to 24 V) is no longer made. All four versions of the board

Works with

  • WLED effects and presets on its own, from the WLED app or a browser
  • xLights: add it on the Controllers tab as vendor WLED
  • ESPixelStick firmware, if you prefer it to WLED
  • Sound reactive WLED with an INMP441 microphone on header H1

Tested before it ships

Every board gets the WLED firmware flashed over USB-C, then goes on our test fixture, which runs effects over Ethernet on all 8 outputs. It ships with our setup already loaded.

Testing the 8 Port LED DistroTesting the 8 Port LED Distro

See it in action

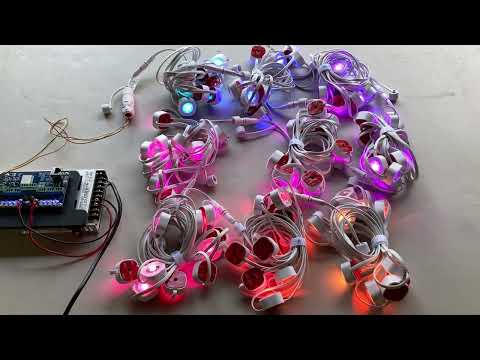

Now works with 36 V Govee prosNow works with 36 V Govee pros 4800 pixels on the 8 Port LED Distro4800 pixels on the 8 Port LED Distro In my 2023 Christmas displayIn my 2023 Christmas display

Mounts and setup help

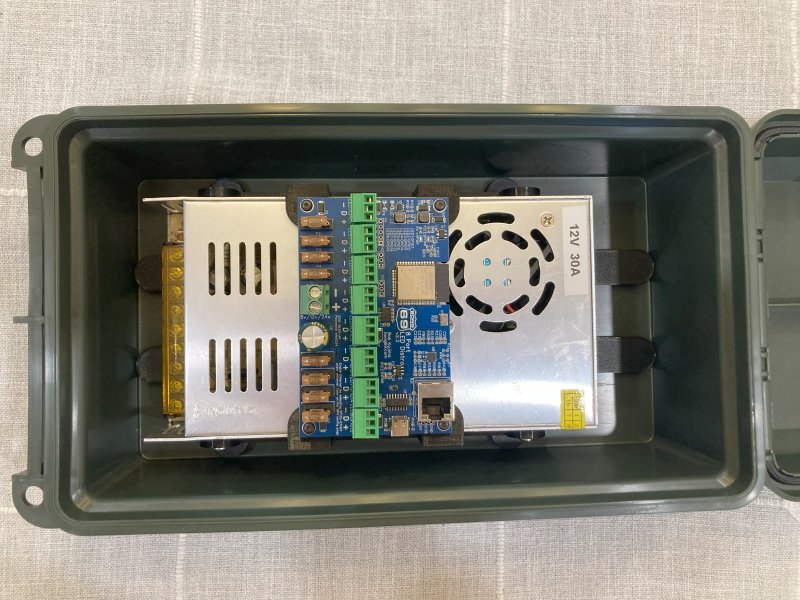

Mounting brackets for a DIN rail or a CG1500 enclosure are free to print on Thingiverse. The FAQ and setup guide on GitHub covers the quick start, power injection, firmware updates, relays and temperature sensors.
