DMX Adapter

Control DMX lights with any controller that runs ESPixelStick firmware version 4.0, including the 8 Port LED Distro.

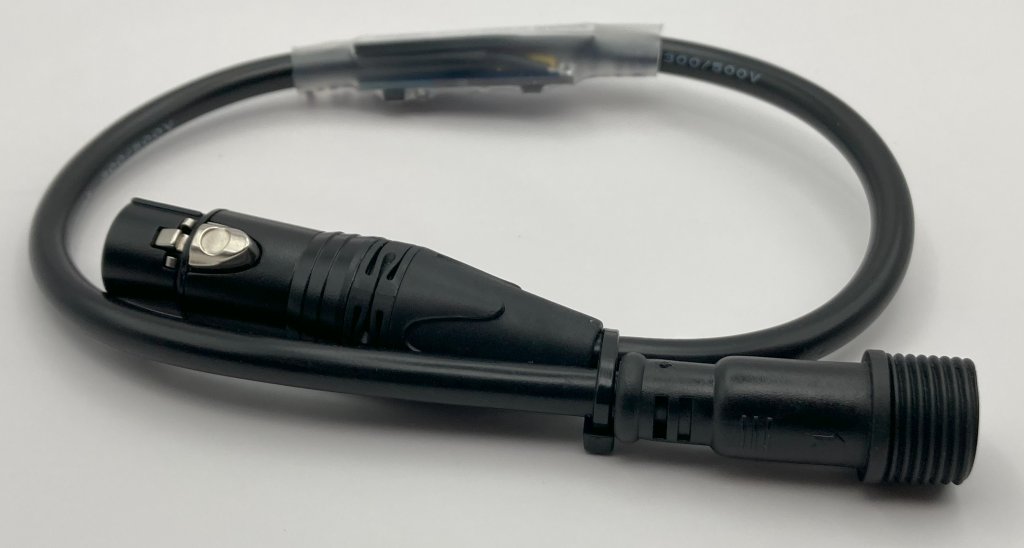

DMX Adapter cable

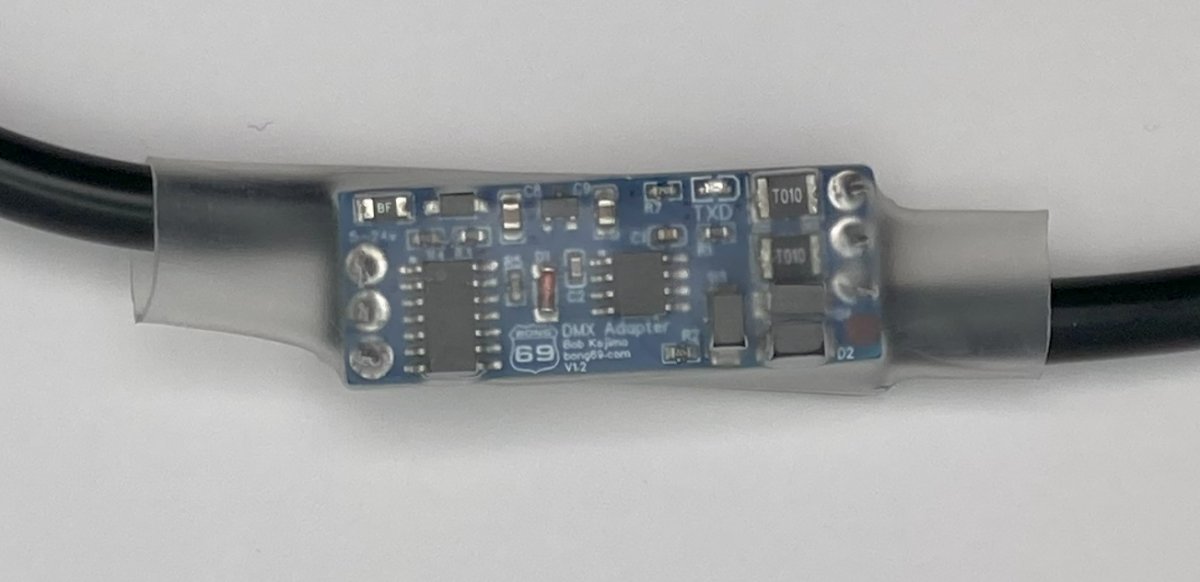

Specifications

Power: 5 V to 24 V
Input: male xConnect
Output: female 3-pin XLR
Total length: 19.5 in (49.5 cm)
Surge protection on the DMX output
Reverse polarity protection on the power input
DMX transmit only
QR code on the label for the setup information

Buy at Wasatch Lights Setup guide on GitHub

Setting it up

The adapter needs a pixel controller running ESPixelStick 4.0, so install ESPixelStick 4.0 on your controller first. Plug the adapter into one of the controller's outputs and set that output to DMX in ESPixelStick. In xLights, discover the controller and pick model ESPixelStick-4.x. The setup guide walks through every step, including addressing your fixtures.

With the 8 Port LED Distro: the ESPixelStick online installer has an "ESP32 BONG 69" platform for it. Plug the adapter into LED port 8, and in xLights pick variant Bong69.

For more on DMX and xLights, see this video by The Christmas Light Guy.
